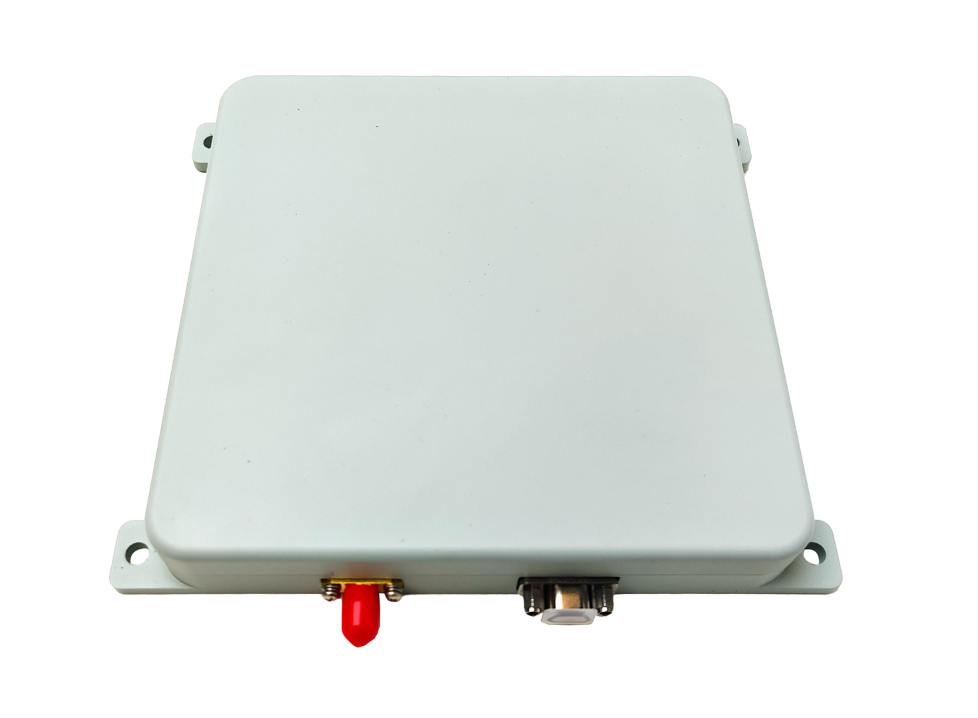

The BK-009Pro-8CH GNSS anti-jamming system is a compact and high-performance GNSS anti-jamming navigation module developed for civilian and industrial UAVs. It supports dual-frequency reception of BeiDou B1/B3 and GPS L1/L2 signals, offering superior positioning accuracy and reliability even under strong electromagnetic interference.
This system integrates an antenna array, anti-jamming components, and GNSS receiver within a single lightweight housing, providing 360° full-sphere interference suppression and strong resilience against multiple interference sources. Ideal for unmanned aerial, ground, or marine platforms, it ensures the security and continuity of PNT (Positioning, Navigation, and Timing) data.
Key Features
-
Dual-Frequency GNSS Support: BeiDou B1/B3 and GPS L1/L2 compatibility for precise navigation.
-
Powerful Anti-Jamming: Handles up to 3 simultaneous wideband interference sources with ≥105 dBc single-channel suppression.
-
360° Spatial Coverage: Complete azimuth and elevation protection (0–360°, –90°~+90° pitch).
-
Integrated Compact Design: Combines antenna array, receiver, and anti-jamming circuit in a single 500 g module.
-
Reliable Performance: Optimized for drones, autonomous vehicles, and complex field environments.
| Specification | Details |
|---|---|
| Anti-Interference Capability | Single: ≥105 dBcThree: ≥95 dBc |
| Interference Types Supported | Band-limited Gaussian noise, Spread-spectrum matched filter, Pulse, Sweep, Mixed interference |
| Anti-Interference Coverage | 0–360° azimuth, -90° to +90° pitch |
| Frequency Bands Supported | BDS-B1 (1561.098 MHz), GPS-L1 (1575.42 MHz), GLONASS-G1 (1602 MHz) |
| RF Output Power | -70 to -60 dBm |
| Output Impedance | 50 Ω |
| Power Consumption | ≤12 W (at room temperature) |
| Dimensions | 150 × 130 × 21 mm |
| Weight | ≤400 g |
| Applications | UAVs, unmanned vehicles, industrial automation, navigation protection |
🚀 Applications
-
UAV (drone) navigation systems
-
Unmanned ground and marine vehicles
-
Mapping, surveying, and inspection platforms
-
Critical communication and timing infrastructure
-
Defense and industrial navigation solutions
🔒 Advantages
-
Proven anti-jamming efficiency in complex environments
-
Compact and easy-to-integrate module for UAV platforms
-
Supports dual-frequency GNSS systems (BeiDou + GPS)
-
Ensures continuous, secure, and reliable navigation
