📌 Overview

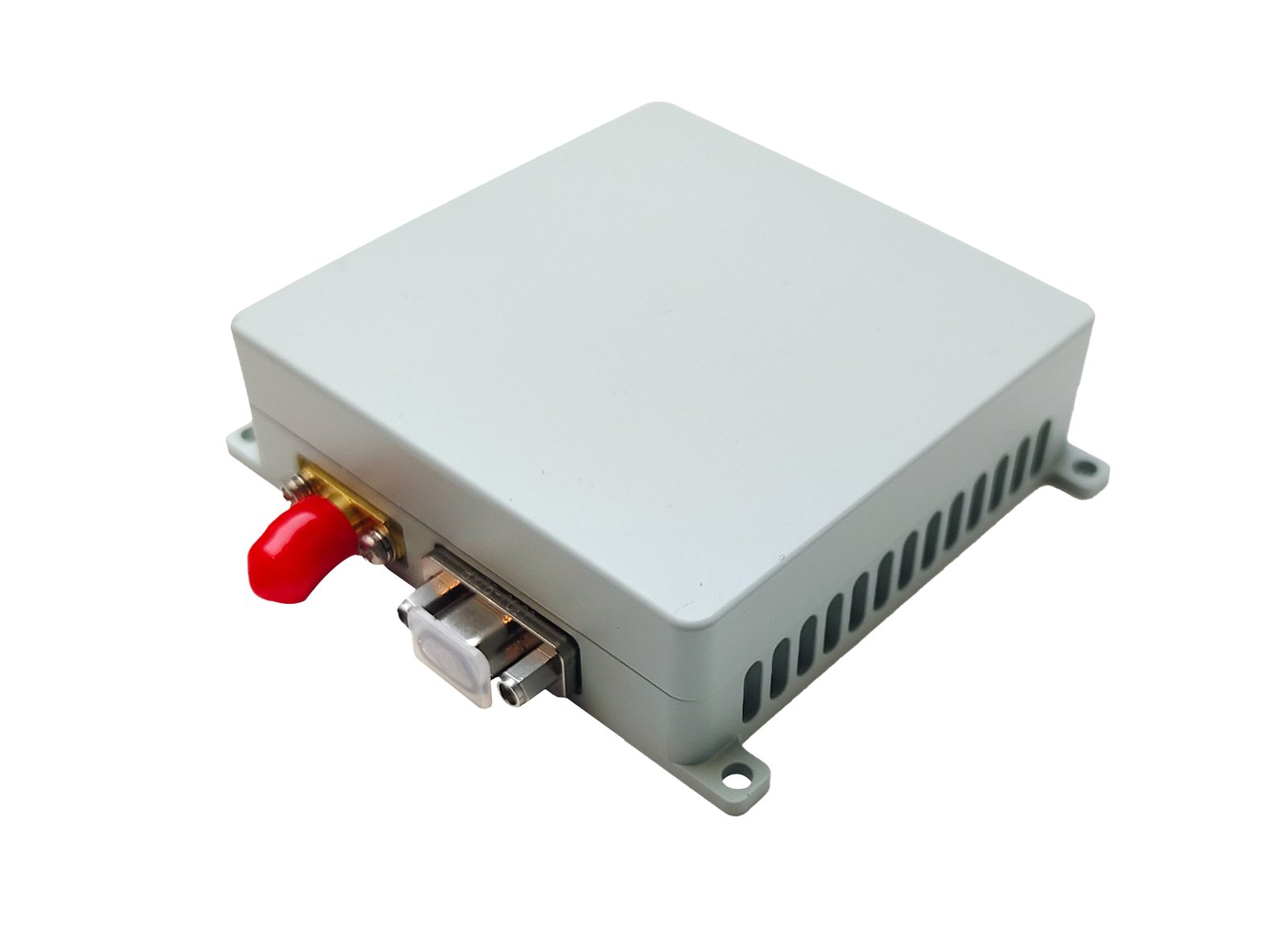

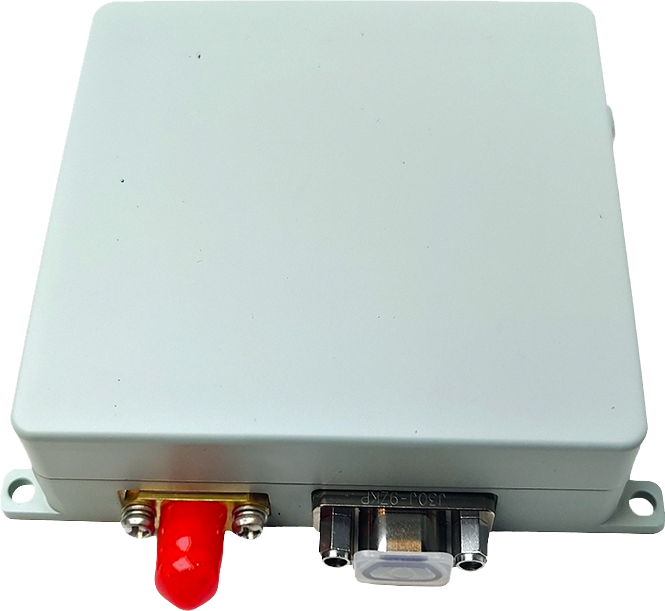

The BK-S65 All-in-One Miniaturized GNSS Anti-Jamming Module is a highly integrated GNSS protection terminal designed for small and medium-sized UAV platforms and other industrial applications requiring reliable positioning under complex electromagnetic environments.
With its 65mm array antenna, compact design, and low power consumption, this module provides effective wideband interference suppression and stable satellite navigation performance for B1/L1 frequency signals.
It integrates an antenna array, anti-jamming circuits, and a GNSS navigation receiver into one lightweight unit, achieving miniaturization, cost efficiency, and easy installation for UAV and robotic systems.
⚡ Key Features
-
High Integration: Combines antenna array, anti-jamming module, and GNSS receiver in one compact device.
-
Strong Anti-Jamming Capability:
-
Single interference suppression ≥ 95 dBc
-
Dual interference ≥ 85 dBc
-
Triple interference ≥ 80 dBc
-
-
Full-Direction Coverage: 0–360° azimuth and –90°~+90° pitch protection.
-
Dual-Frequency Support: Compatible with BeiDou B1 and GPS L1 signals for improved accuracy.
-
Lightweight and Low Power: Only 130 g with ≤6 W power consumption, ideal for drones with limited payload capacity.
-
Stable PNT Security: Provides continuous positioning and timing information even in high-interference environments.
🎥 Real-World Performance
In flight tests, UAVs equipped with this anti-jamming module maintained over 20 satellite signals under active interference, while ordinary drones lost nearly all signal locks.
Even in hover mode, the protected drone remained stable and drift-free, demonstrating its exceptional anti-interference efficiency and reliable navigation performance.
🧩 Technical Specifications
| Parameter | Specification |
|---|---|
| Anti-Interference Capability | Single ≥95 dBc；Dual ≥85 dBc；Triple ≥80 dBc |
| Interference Types | Band-limited Gaussian noise, Spread-spectrum, Pulse, Sweep, Mixed |
| Coverage | 0–360° Azimuth, Pitch –90°~+90° |
| Dimensions | 65 × 65 × 21 mm |
| Power Consumption | ≤ 6 W (room temperature) |
| Weight | ≤ 130 g |
| RF Output Frequency | 1575.42 MHz / 1561.098 MHz |
| In-Band Output Power | –75 ~ –85 dBm |
| Output Impedance | 50 Ω |
🚀 Applications
-
Small and medium UAVs / Industrial drones
-
Unmanned ground vehicles (UGV)
-
Surveying, mapping, and monitoring systems
-
Critical communication and defense platforms
-
Precision navigation in interference-prone environments
