⚙️ Product Overview

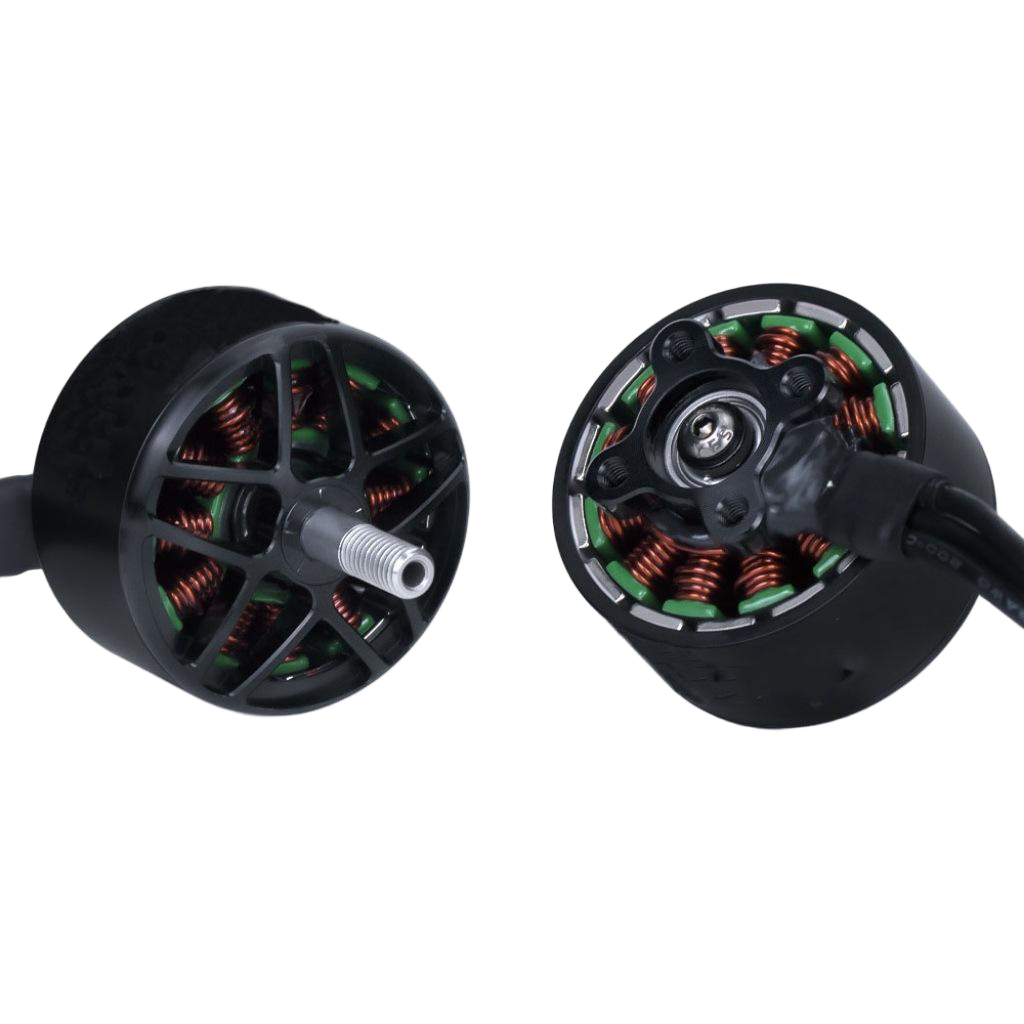

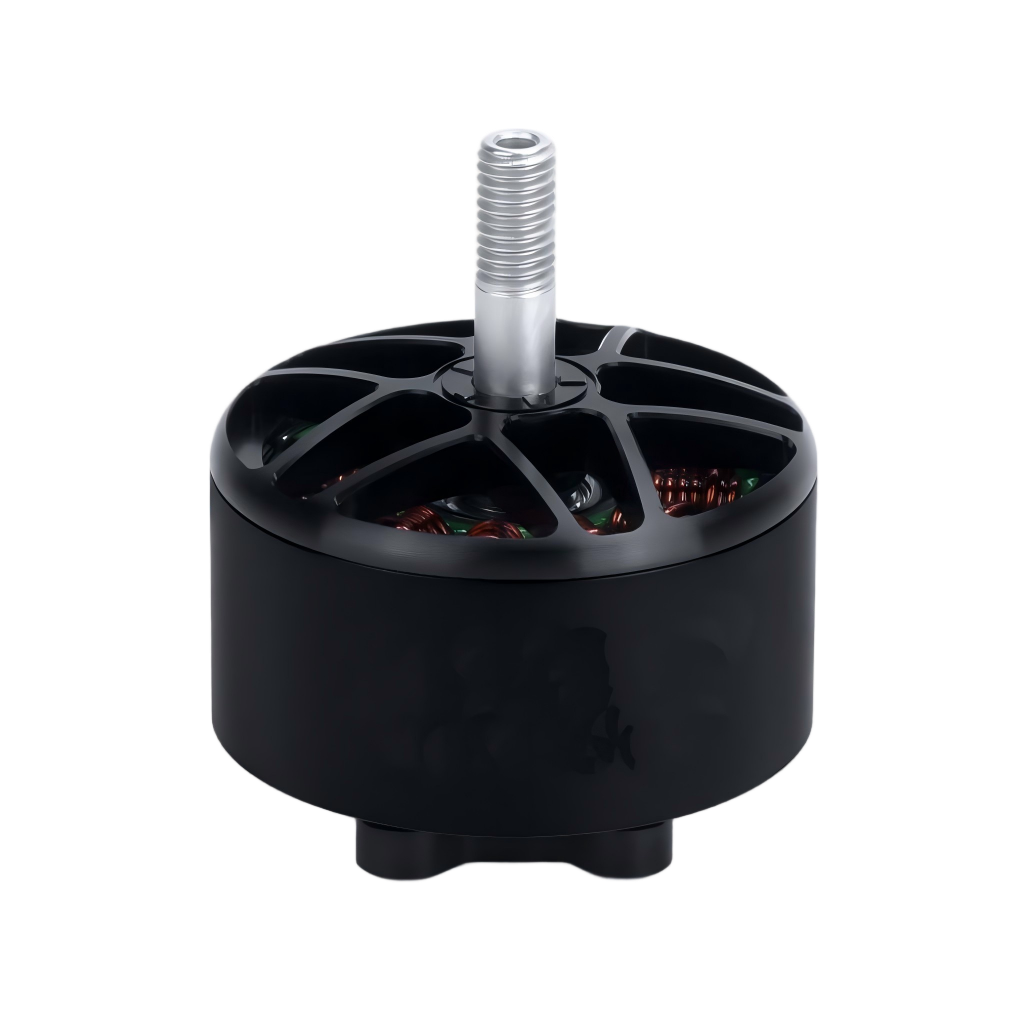

The BOKEYU 3115 Brushless Drone Motor is a high-performance power solution built for drones requiring strong lift, high efficiency, and reliable operation. Engineered with a durable 12N14P configuration and precision winding, this motor ensures consistent thrust and minimal vibration, ideal for FPV drones, aerial photography UAVs, and industrial unmanned systems.
🔋 Key Features
-
KV Rating: 900KV / 730KV options for flexible applications
-
Operating Voltage: 3S–6S LiPo battery compatible
-

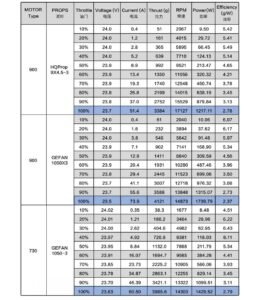

Peak Power: up to 1739.79W (900KV) / 1429.52W (730KV)
-
Maximum Thrust: up to 4121g (900KV) / 3985.6g (730KV)
-
Low Resistance: 33.0mΩ (900KV) / 45.0mΩ (730KV) for improved efficiency
-
Motor Dimensions: Φ69.8 × 30mm
-
Shaft Diameter: 5mm
-
Weight: approx. 120g (including wires)
-
Configuration: 12N14P structure, 18AWG silicone wire
-
No-load Current: 1.6–1.8A
-
Mounting Hole Pattern: 4-M3 at Φ19mm

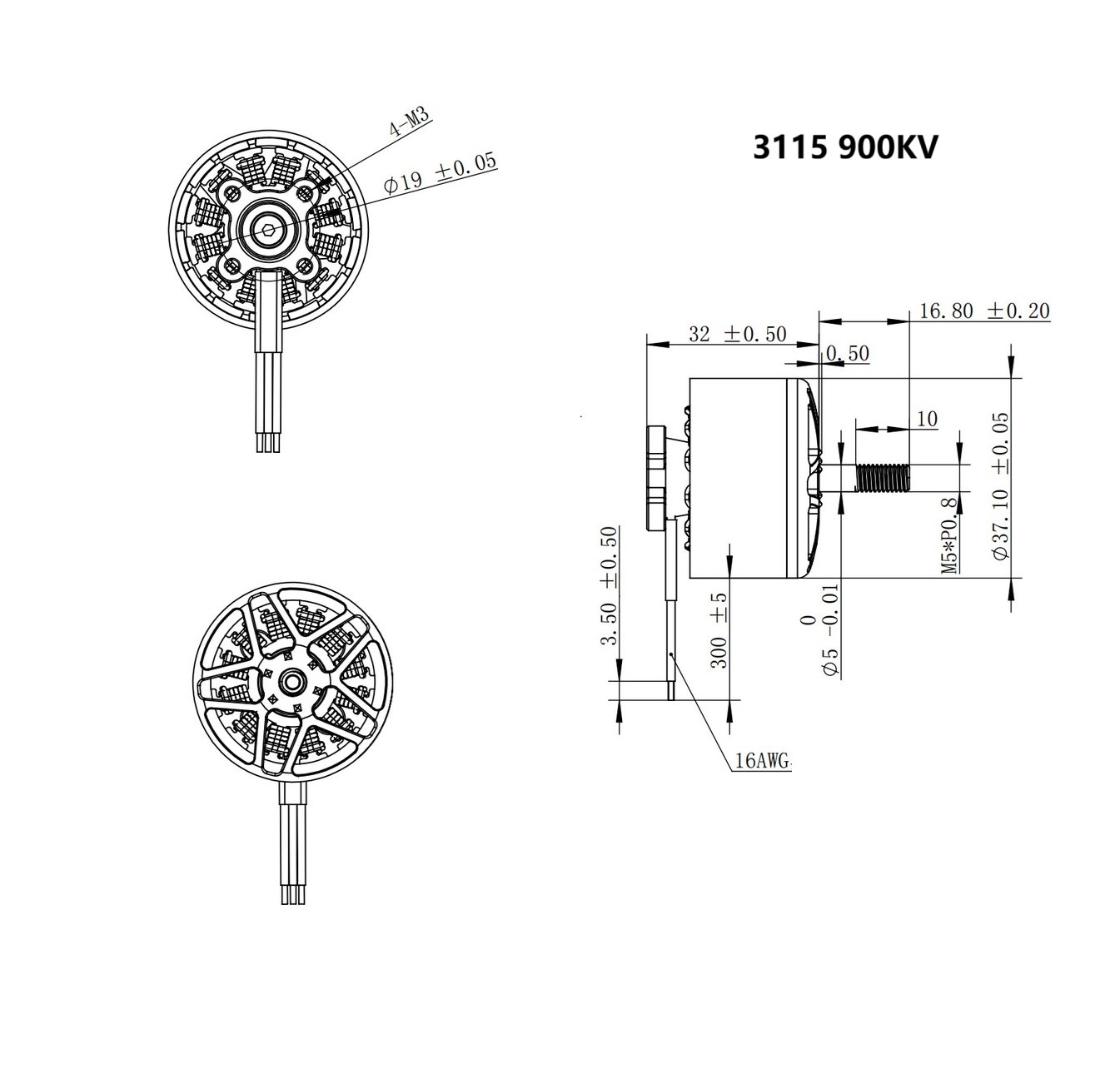

🛠️ Technical Drawing & Construction
The motor adopts CNC precision aluminum housing for superior heat dissipation, with high-temperature-resistant copper wire winding and 16AWG silicone wires for long-term reliability. The integrated design reduces vibration, providing smooth and quiet flight performance.
🚁 Application Scenarios
-
FPV Racing Drones
-
Aerial Photography UAVs
-
Mapping & Survey Drones
-
Agricultural and Industrial Drones
✅ Why Choose BOKEYU 3115 Motor
-
Optimized torque-to-weight ratio
-
Consistent performance under high load
-
Supports long endurance and stable flight
-
Quality-tested for professional UAV applications
